Home Products eot crane limit switch

Our Products

eot crane limit switch

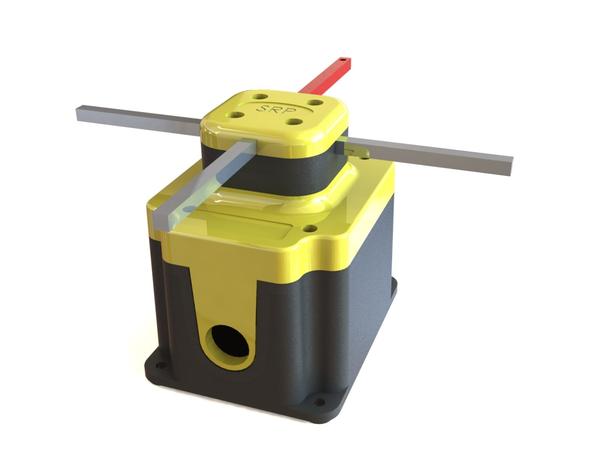

Cross Bar Limit Switch is a 4-position type control which operates at 90 degree rotationsfor the single as well as two speed motor control. It is equipped with rotary gears whichensures smooth rotation in between 12 to 200 rounds per minute. The outer casing ofthis component is made up by using best in class self-extinguished thermoplastic withdouble insulation with an ingress protection of IP65 to prevent damages from dust, oil,and other non-corrosive material. Cross Bar Limit Switch availed by us is capable tooperate efficiently with a temperature range in between -25° to 55° degrees CelsiusProduct Features :Body Material: Unbreakable ABS/NylonDegree of Protection: IP-65Mounting Position: Foot Mounted / HorizontalRated Voltage: 500 V ACThermal Test Current: 20 Amp
Cross Bar / Position Limit Switch

INR 5600

VIEW DETAILS

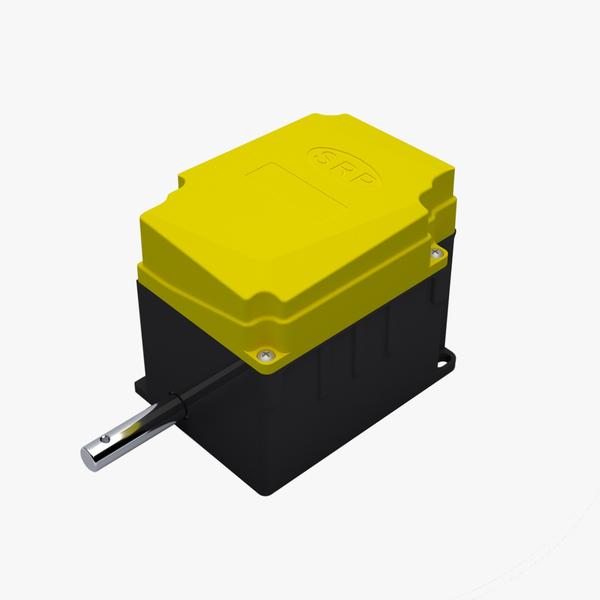

Rotary Gear Limit Switch is basically consists of heavy duty wormgear drive. The worm gear unit is built in a cast housing fitted onmain body of Limit Switch. The cam shaft which extends frombehind the gear in to housing, accommodates the camsadjustable actuators which are fitted on the cams. Theseactuators strikes the contact finger of respective contacts.product Feature :Body Material: Unbreakable ABS/NylonDegree of Protection: IP-65Rated Voltage Insulation: 500 V ACThermal Test Current: 10 AmpsGear Ratio: 1:25, 1:50, 1:100, 1:150, 1:200 No. of Contacts: 2 & 4Drive Type: Worm Drive
Rotary Gear Limit Switch

INR 5800

VIEW DETAILS

Filter using tags

BUSBAR ACCESSORIESC RAIL SYSTEMC RAIL FESTOON SYSTEM ACCESSORIESCURRENT COLLECTORDSL BUSBAR SYSTEMBUSBAR FOR EOT CRANECRANE CABLE TROLLEYPENDANT STATIONLIMIT SWITCHESI/T BEAM TROLLEYmaster controllerMetal wheelEmergency switchHAND WINCHAnti collision deviceI BEAM TROLLEYPUSH BUTTON STATIONpush button station supplierpush button station dealerpush button station buy onlineEOT Crane Limit Switch
Cross Bar Limit Switch is a 4-position type control which operates at 90 degree rotationsfor the single as well as two speed motor control. It is equipped with rotary gears whichensures smooth rotation in between 12 to 200 rounds per minute. The outer casing ofthis component is made up by using best in class self-extinguished thermoplastic withdouble insulation with an ingress protection of IP65 to prevent damages from dust, oil,and other non-corrosive material. Cross Bar Limit Switch availed by us is capable tooperate efficiently with a temperature range in between -25° to 55° degrees CelsiusProduct Features :Body Material: Unbreakable ABS/NylonDegree of Protection: IP-65Mounting Position: Foot Mounted / HorizontalRated Voltage: 500 V ACThermal Test Current: 20 Amp
View Details
Cross Bar / Position Lim

INR 5600

Rotary Gear Limit Switch is basically consists of heavy duty wormgear drive. The worm gear unit is built in a cast housing fitted onmain body of Limit Switch. The cam shaft which extends frombehind the gear in to housing, accommodates the camsadjustable actuators which are fitted on the cams. Theseactuators strikes the contact finger of respective contacts.product Feature :Body Material: Unbreakable ABS/NylonDegree of Protection: IP-65Rated Voltage Insulation: 500 V ACThermal Test Current: 10 AmpsGear Ratio: 1:25, 1:50, 1:100, 1:150, 1:200 No. of Contacts: 2 & 4Drive Type: Worm Drive
View Details
Rotary Gear Limit Switch

INR 5800
